10SEV220M6.3X8
Part number：
10SEV220M6.3X8
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

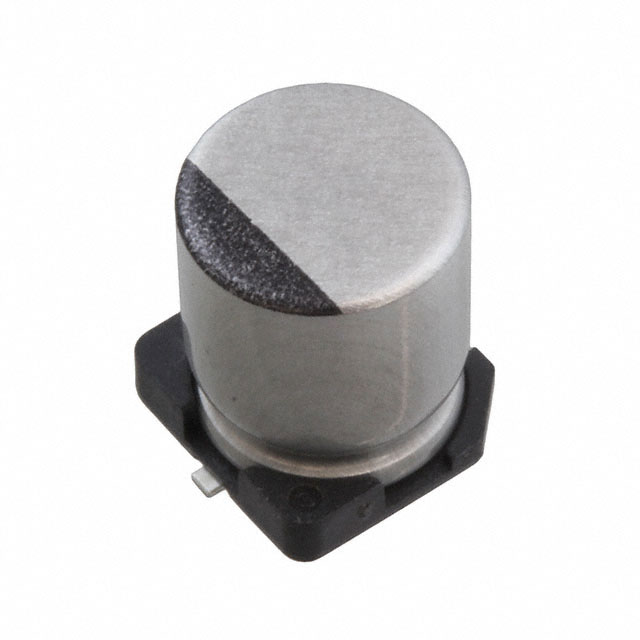

CAP ALUM 220UF 20% 10V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2535
minimum : 0
quantity
unit price
price
900
0.2
180
1800
0.18
324
2700
0.17
459
6300
0.16
1008
22500
0.15
3375
45000
0.14
6300
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -40°C ~ 85°C
  • Applications
    Automotive
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    2000 Hrs @ 85°C
  • Surface Mount Land Size
    0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height - Seated (Max)
    0.315" (8.00mm)
  • Capacitance
    220 µF
  • Voltage - Rated
    10 V
  • Ripple Current @ Low Frequency
    175 mA @ 120 Hz
  • Ripple Current @ High Frequency
    210 mA @ 10 kHz
