16TZV680M10X10.5
Part number：
16TZV680M10X10.5
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

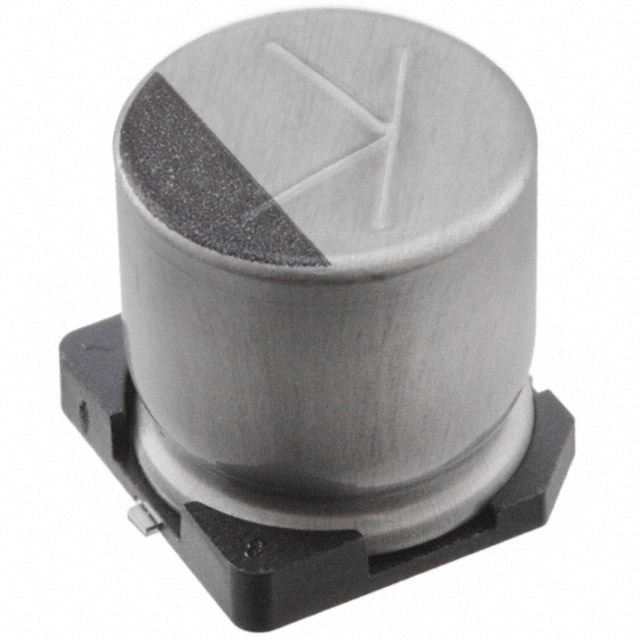

CAP ALUM 680UF 20% 16V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 62406
minimum : 0
quantity
unit price
price
500
0.28
140
1000
0.26
260
2500
0.24
600
5000
0.23
1150
12500
0.22
2750
25000
0.2
5000
50000
0.2
10000
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    Automotive
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    2000 Hrs @ 105°C
  • Surface Mount Land Size
    0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height - Seated (Max)
    0.413" (10.50mm)
  • Capacitance
    680 µF
  • Voltage - Rated
    16 V
  • Impedance
    80 mOhms
  • Ripple Current @ Low Frequency
    510 mA @ 120 Hz
  • Ripple Current @ High Frequency
    850 mA @ 100 kHz
  • 13670023222
