25JGV33M6.3X6.1
Part number：
25JGV33M6.3X6.1
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

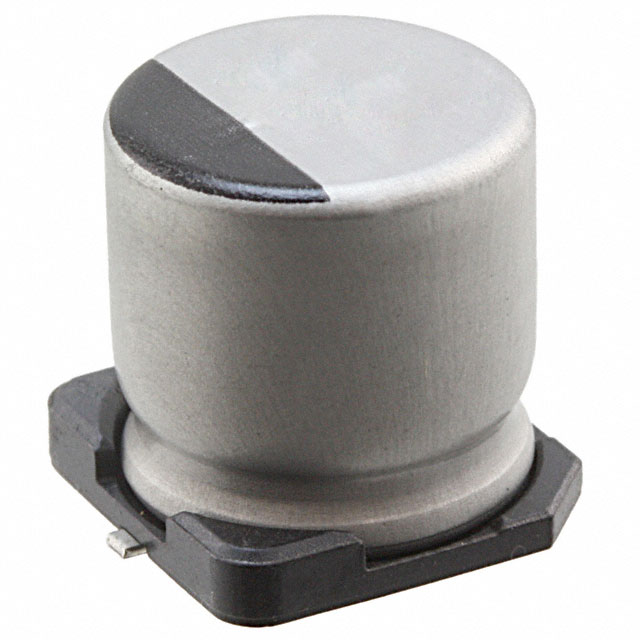

CAP ALUM 33UF 20% 25V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1000
0.14
140
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    Automotive, High Temperature Reflow
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    2000 Hrs @ 105°C
  • Surface Mount Land Size
    0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height - Seated (Max)
    0.240" (6.10mm)
  • Capacitance
    33 µF
  • Voltage - Rated
    25 V
  • Ripple Current @ Low Frequency
    65 mA @ 120 Hz
  • Ripple Current @ High Frequency
    97.5 mA @ 10 kHz
  • 13670023222
