25ZT150MT78X11.5
Part number：
25ZT150MT78X11.5
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

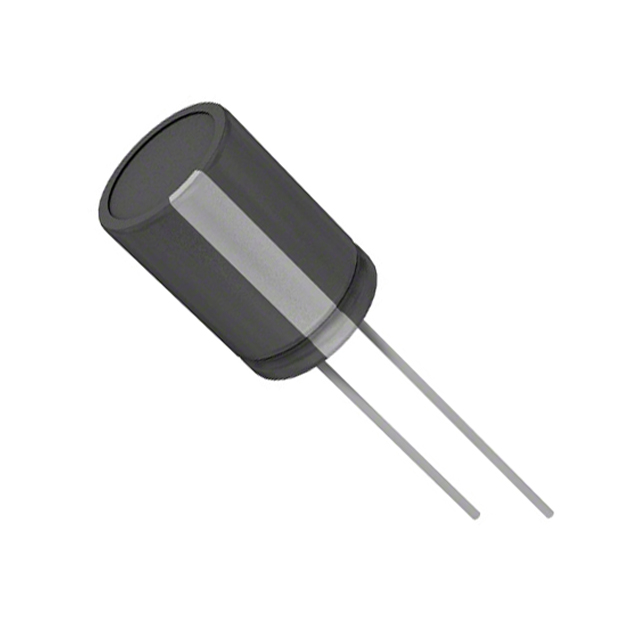

CAP ALUM 150UF 20% 25V RADIAL
package：
ROHS status：
Yes
currency：
USD
RFQ Add to RFQ list
inventory 1600
Please send an inquiry form, we will reply immediately
Quick inquiry
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.315" Dia (8.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 125°C
  • Applications
    General Purpose
  • Lead Spacing
    0.138" (3.50mm)
  • Lifetime @ Temp.
    2000 Hrs @ 125°C
  • Height - Seated (Max)
    0.512" (13.00mm)
  • Capacitance
    150 µF
  • Voltage - Rated
    25 V
  • Impedance
    94 mOhms
  • Ripple Current @ Low Frequency
    266 mA @ 120 Hz
  • Ripple Current @ High Frequency
    760 mA @ 100 kHz
