collect compare
35JEV47M6.3X8
Part number：
35JEV47M6.3X8
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

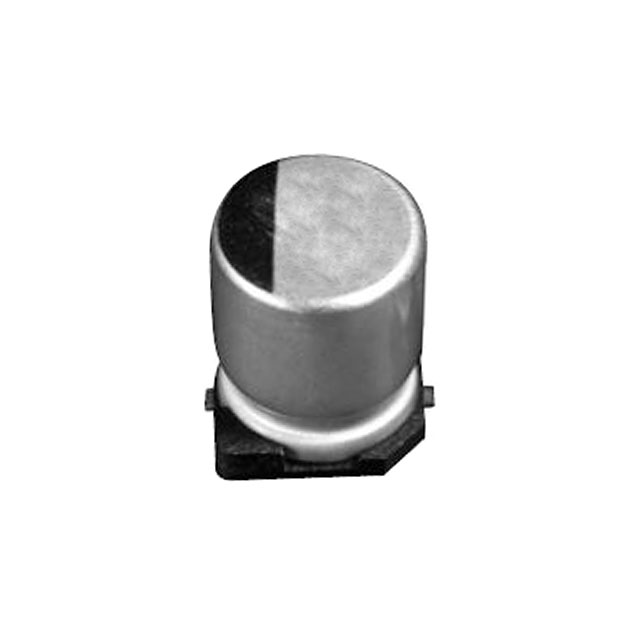

CAP ALUM 47UF 20% 35V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
900
0.17
153
1800
0.16
288
2700
0.14
378
6300
0.13
819
22500
0.13
2925
45000
0.12
5400
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -40°C ~ 85°C
  • Applications
    High Temperature Reflow
  • Lifetime @ Temp.
    2000 Hrs @ 85°C
  • Surface Mount Land Size
    0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height - Seated (Max)
    0.315" (8.00mm)
  • Capacitance
    47 µF
  • Voltage - Rated
    35 V
  • Ripple Current @ Low Frequency
    105 mA @ 120 Hz
  • Ripple Current @ High Frequency
    157.5 mA @ 10 kHz
