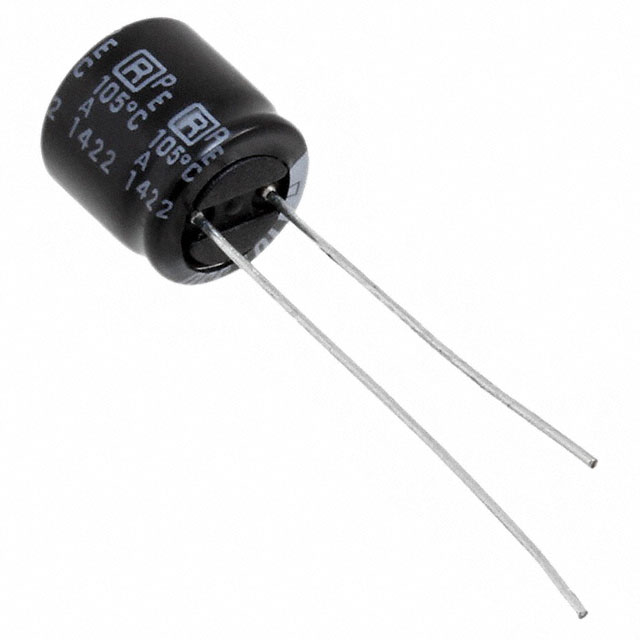

35ML100MEFCT78X7.5
Part number：
35ML100MEFCT78X7.5
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：
CAP ALUM 100UF 20% 35V RADIAL
package：
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2217
minimum : 0
quantity
unit price
price
1
0.39
0.39
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.315" Dia (8.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.138" (3.50mm)
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    0.335" (8.50mm)
  • Capacitance
    100 µF
  • Voltage - Rated
    35 V
  • Ripple Current @ Low Frequency
    125 mA @ 120 Hz
  • Ripple Current @ High Frequency
    150 mA @ 10 kHz
