35YXJ470M10X16
Part number：
35YXJ470M10X16
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

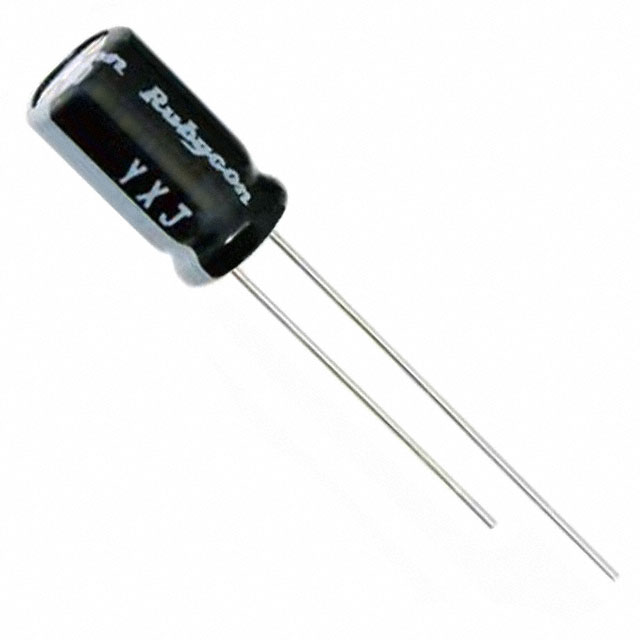

CAP ALUM 470UF 20% 35V RADIAL
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 6482
minimum : 0
quantity
unit price
price
1
0.6
0.6
10
0.38
3.8
50
0.28
14
100
0.24
24
500
0.19
95
1000
0.18
180
3000
0.16
480
5000
0.15
750
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Lifetime @ Temp.
    10000 Hrs @ 105°C
  • Height - Seated (Max)
    0.689" (17.50mm)
  • Capacitance
    470 µF
  • Voltage - Rated
    35 V
  • Impedance
    62 mOhms
  • Ripple Current @ Low Frequency
    907.5 mA @ 120 Hz
  • Ripple Current @ High Frequency
    1.21 A @ 100 kHz
  • 13670023222
