50PX470MEFCT810X20
Part number：
50PX470MEFCT810X20
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

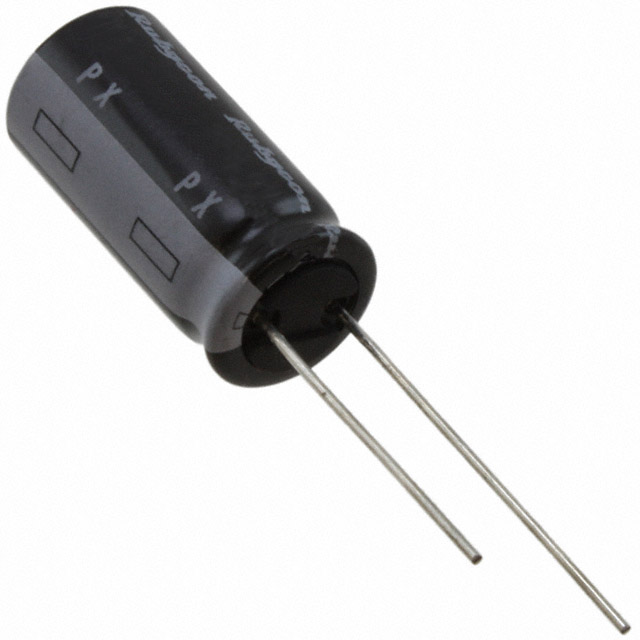

CAP ALUM 470UF 20% 50V RADIAL
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1978
minimum : 0
quantity
unit price
price
500
0.27
135
1000
0.25
250
2500
0.23
575
5000
0.22
1100
12500
0.21
2625
25000
0.2
5000
50000
0.19
9500
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Lifetime @ Temp.
    2000 Hrs @ 105°C
  • Height - Seated (Max)
    0.866" (22.00mm)
  • Capacitance
    470 µF
  • Voltage - Rated
    50 V
  • Ripple Current @ Low Frequency
    600 mA @ 120 Hz
  • Ripple Current @ High Frequency
    720 mA @ 10 kHz
