63LSW4700MEFC36X50
Part number：
63LSW4700MEFC36X50
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

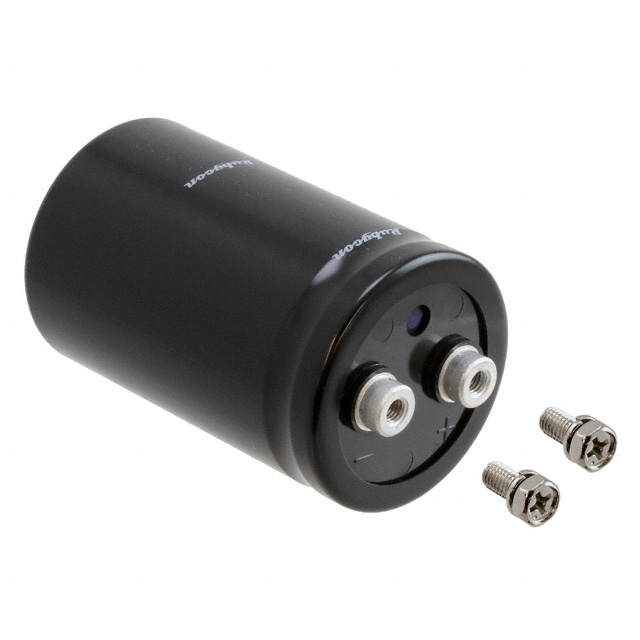

CAP ALUM 4700UF 20% 63V SCREW
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
10
13.43
134.3
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    1.417" Dia (36.00mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis Mount
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.500" (12.70mm)
  • Lifetime @ Temp.
    3000 Hrs @ 105°C
  • Height - Seated (Max)
    2.126" (54.00mm)
  • Capacitance
    4700 µF
  • Voltage - Rated
    63 V
  • Ripple Current @ Low Frequency
    3.2 A @ 120 Hz
  • Ripple Current @ High Frequency
    3.52 A @ 10 kHz
