6.3ML1000MEFCT810X9
Part number：
6.3ML1000MEFCT810X9
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

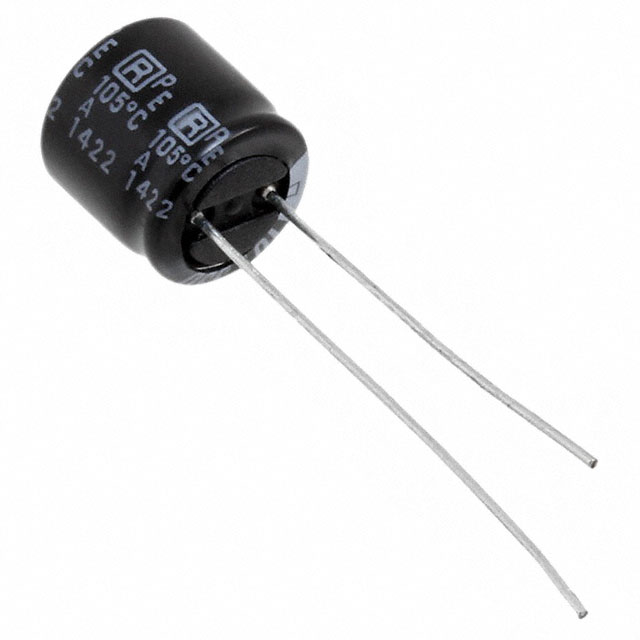

CAP ALUM 1000UF 20% 6.3V RADIAL
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
1000
0.18
180
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    0.413" (10.50mm)
  • Capacitance
    1000 µF
  • Voltage - Rated
    6.3 V
  • Ripple Current @ Low Frequency
    480 mA @ 120 Hz
  • Ripple Current @ High Frequency
    576 mA @ 10 kHz
