63RX30100M10X16
Part number：
63RX30100M10X16
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

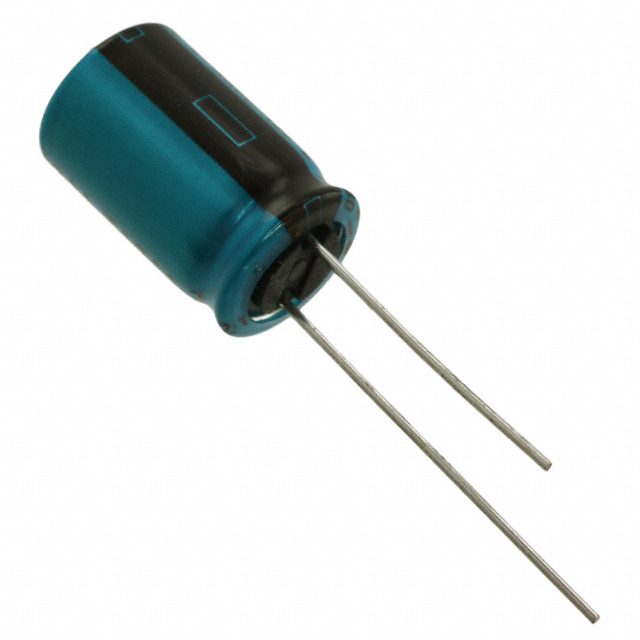

CAP ALUM 100UF 20% 63V RADIAL
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 13110
minimum : 0
quantity
unit price
price
1
0.72
0.72
10
0.45
4.5
50
0.33
16.5
100
0.3
30
500
0.23
115
1000
0.21
210
3000
0.19
570
5000
0.18
900
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 130°C
  • Applications
    Automotive
  • Lead Spacing
    0.197" (5.00mm)
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    2000 Hrs @ 130°C
  • Height - Seated (Max)
    0.709" (18.00mm)
  • Capacitance
    100 µF
  • Voltage - Rated
    63 V
  • Impedance
    200 mOhms
  • Ripple Current @ Low Frequency
    315 mA @ 120 Hz
  • Ripple Current @ High Frequency
    450 mA @ 100 kHz
