6.3SKV100M6.3X5.5
Part number：
6.3SKV100M6.3X5.5
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

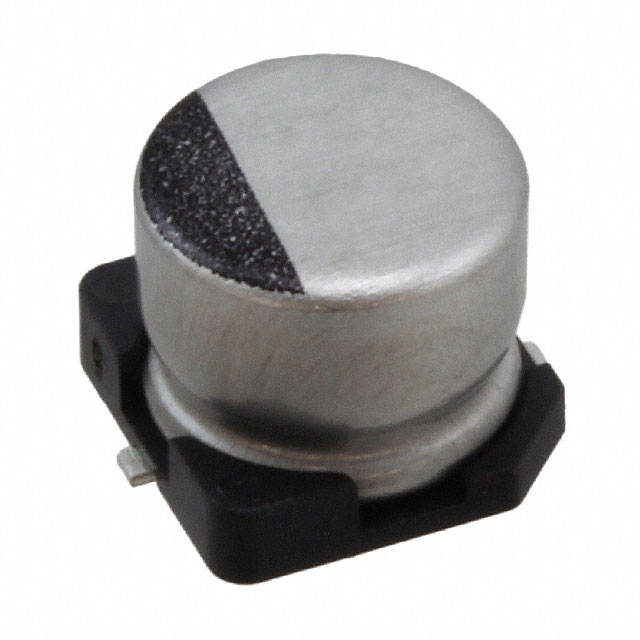

CAP ALUM 100UF 20% 6.3V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2600
minimum : 0
quantity
unit price
price
1000
0.14
140
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lifetime @ Temp.
    1000 Hrs @ 105°C
  • Surface Mount Land Size
    0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height - Seated (Max)
    0.217" (5.50mm)
  • Capacitance
    100 µF
  • Voltage - Rated
    6.3 V
  • Ripple Current @ Low Frequency
    57 mA @ 120 Hz
  • Ripple Current @ High Frequency
    68.4 mA @ 10 kHz
