6.3TZV47M4X6.1
Part number：
6.3TZV47M4X6.1
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

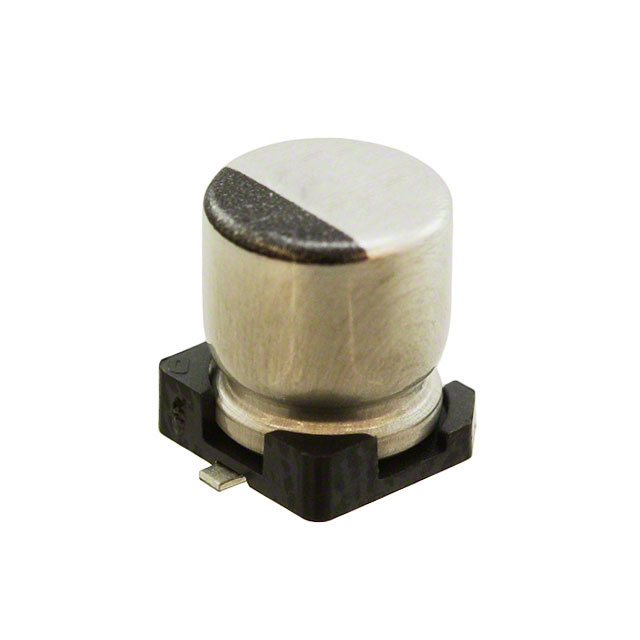

CAP ALUM 47UF 20% 6.3V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 11608
minimum : 0
quantity
unit price
price
2000
0.13
260
4000
0.12
480
6000
0.11
660
10000
0.11
1100
50000
0.09
4500
100000
0.09
9000
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.157" Dia (4.00mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    Automotive
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    2000 Hrs @ 105°C
  • Surface Mount Land Size
    0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height - Seated (Max)
    0.240" (6.10mm)
  • Capacitance
    47 µF
  • Voltage - Rated
    6.3 V
  • Impedance
    1.35 Ohms
  • Ripple Current @ Low Frequency
    28.8 mA @ 120 Hz
  • Ripple Current @ High Frequency
    90 mA @ 100 kHz
