6.3ZLH6800MEFCG412.5X35
Part number：
6.3ZLH6800MEFCG412.5X35
CLASSIFICATION：
Capacitors
manufacturer：
Rubycon
describe：

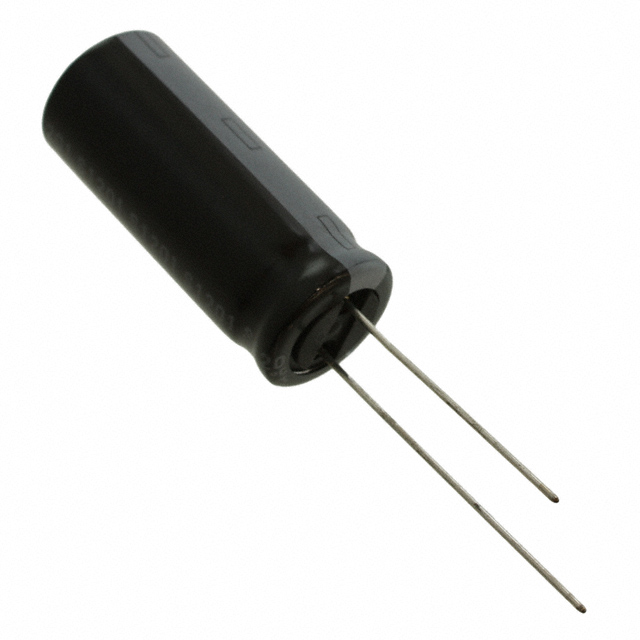

CAP ALUM 6800UF 20% 6.3V RADIAL
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
600
0.62
372
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.492" Dia (12.50mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Lifetime @ Temp.
    10000 Hrs @ 105°C
  • Height - Seated (Max)
    1.457" (37.00mm)
  • Capacitance
    6800 µF
  • Voltage - Rated
    6.3 V
  • Impedance
    12 mOhms
  • Ripple Current @ Low Frequency
    2.499 A @ 120 Hz
  • 13670023222
