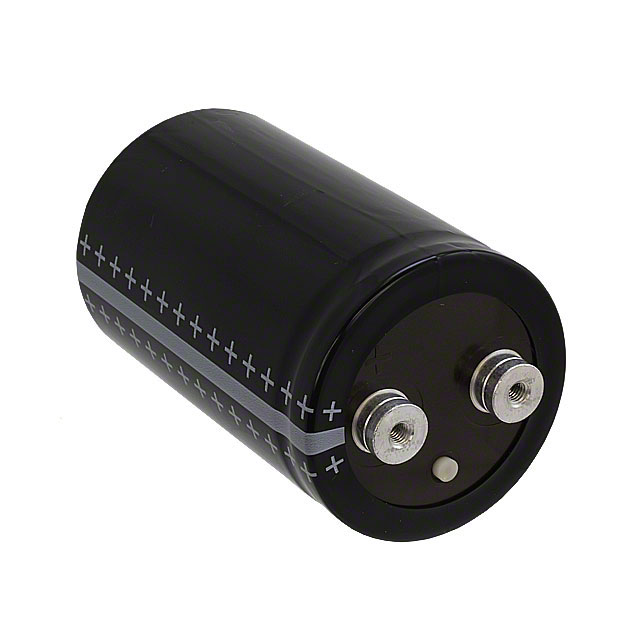

B41458B8479M003
Part number：
B41458B8479M003
CLASSIFICATION：
Capacitors
manufacturer：
TDK EPCOS
describe：
CAP ALUM 47000UF 20% 63V SCREW
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
50
50.49
2524.5
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    2.532" Dia (64.30mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis Mount
  • Operating Temperature
    -40°C ~ 85°C
  • Applications
    General Purpose
  • Lead Spacing
    1.122" (28.50mm)
  • ESR (Equivalent Series Resistance)
    10mOhm @ 100Hz
  • Lifetime @ Temp.
    12000 Hrs @ 85°C
  • Height - Seated (Max)
    4.201" (106.70mm)
  • Capacitance
    47000 µF
  • Voltage - Rated
    63 V
  • Impedance
    9.4 mOhms
  • Ripple Current @ Low Frequency
    18 A @ 100 Hz
  • 13670023222
