B41550E4229Q000
Part number：
B41550E4229Q000
CLASSIFICATION：
Capacitors
manufacturer：
TDK EPCOS
describe：

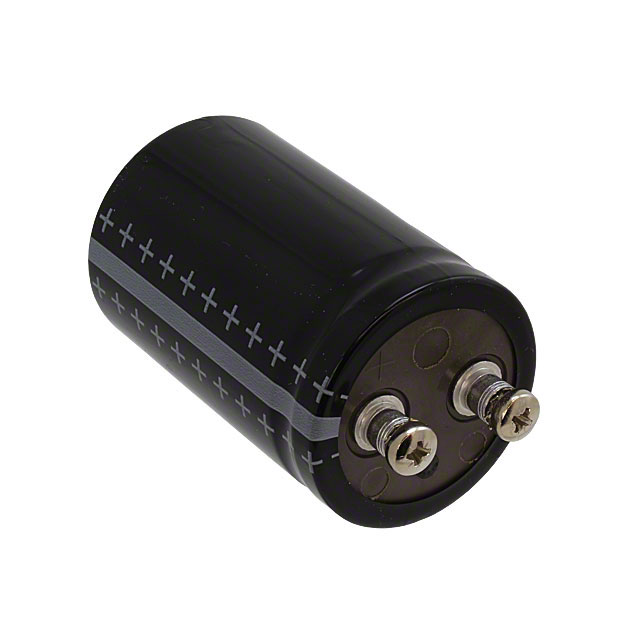

CAP ALUM 22000UF 16V SCREW
package：
ROHS status：
Yes
currency：
USD
RFQ Add to RFQ list
inventory 1600
Please send an inquiry form, we will reply immediately
Quick inquiry
specifications
  • Tolerance
    -10%, +30%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    1.406" Dia (35.70mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis Mount
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.500" (12.70mm)
  • ESR (Equivalent Series Resistance)
    21mOhm @ 100Hz
  • Lifetime @ Temp.
    10000 Hrs @ 105°C
  • Height - Seated (Max)
    3.217" (81.70mm)
  • Capacitance
    22000 µF
  • Voltage - Rated
    16 V
  • Impedance
    18 mOhms
  • Ripple Current @ Low Frequency
    10 A @ 100 Hz
