B41580A9229M000
Part number：
B41580A9229M000
CLASSIFICATION：
Capacitors
manufacturer：
TDK EPCOS
describe：

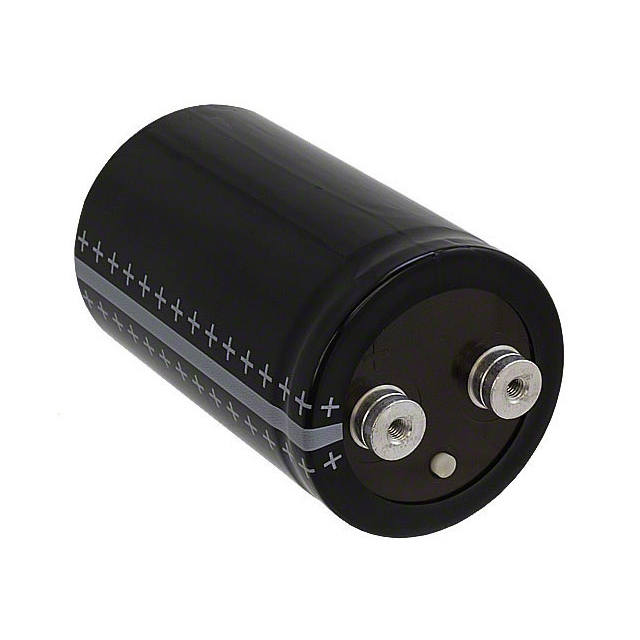

CAP ALUM 22000UF 20% 100V SCREW
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1600
minimum : 0
quantity
unit price
price
32
68.6
2195.2
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    3.028" Dia (76.90mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis, Stud Mount
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    1.248" (31.70mm)
  • ESR (Equivalent Series Resistance)
    6mOhm @ 100Hz
  • Lifetime @ Temp.
    3000 Hrs @ 105°C
  • Height - Seated (Max)
    4.201" (106.70mm)
  • Capacitance
    22000 µF
  • Voltage - Rated
    100 V
  • Impedance
    6 mOhms
  • Ripple Current @ Low Frequency
    17 A @ 100 Hz
