B43584A2159M000
Part number：
B43584A2159M000
CLASSIFICATION：
Capacitors
manufacturer：
TDK EPCOS
describe：

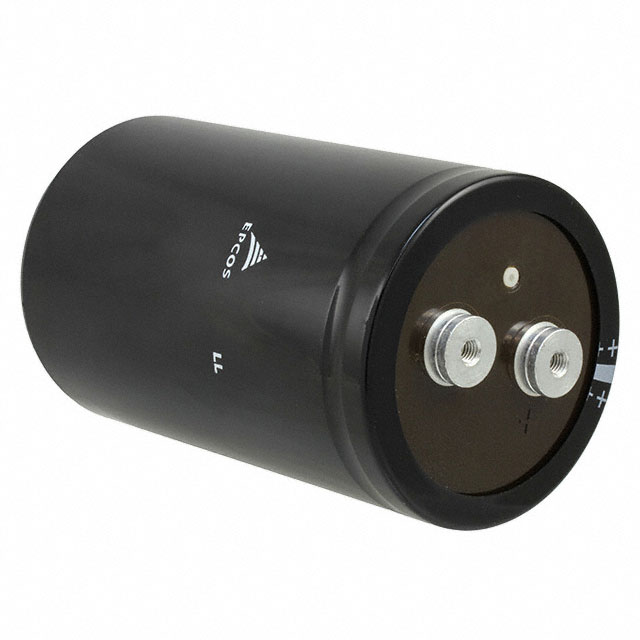

CAP ALUM 15000UF 20% 250V SCREW
package：
ROHS status：
Yes
currency：
USD
RFQ Add to RFQ list
inventory 1600
Please send an inquiry form, we will reply immediately
Quick inquiry
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    3.583" Dia (91.00mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis, Stud Mount
  • Operating Temperature
    -25°C ~ 85°C
  • Applications
    General Purpose
  • Lead Spacing
    1.248" (31.70mm)
  • ESR (Equivalent Series Resistance)
    7mOhm @ 100Hz
  • Lifetime @ Temp.
    15000 Hrs @ 85°C
  • Height - Seated (Max)
    5.728" (145.50mm)
  • Capacitance
    15000 µF
  • Voltage - Rated
    250 V
  • Impedance
    8 mOhms
  • Ripple Current @ Low Frequency
    29.2 A @ 100 Hz
