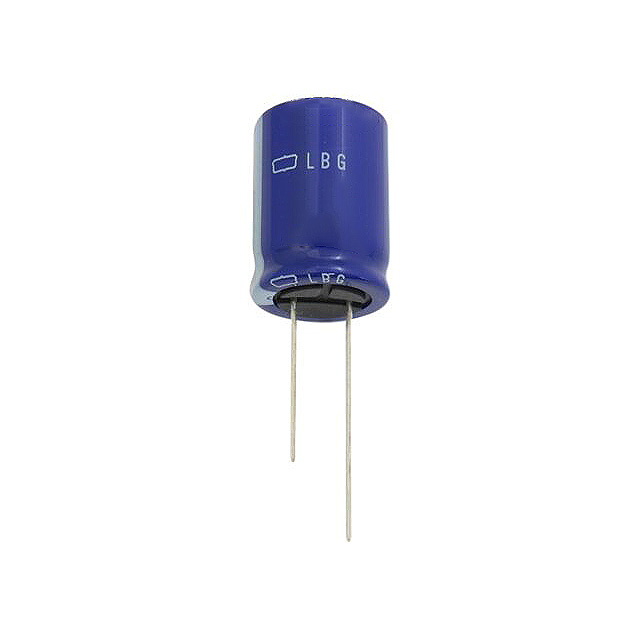

ELBG350ELL252AL25S
Part number：
ELBG350ELL252AL25S
CLASSIFICATION：
Capacitors
manufacturer：
United Chemi-Con
describe：
CAP ALUM 2500UF 35V RADIAL
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2561
minimum : 0
quantity
unit price
price
1
1.79
1.79
10
1.34
13.4
50
1.23
61.5
100
1
100
500
0.8
400
1000
0.71
710
2500
0.66
1650
5000
0.64
3200
specifications
  • Tolerance
    0%, +30%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.630" Dia (16.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    Automotive
  • Lead Spacing
    0.295" (7.50mm)
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    1.043" (26.50mm)
  • Capacitance
    2500 µF
  • Voltage - Rated
    35 V
  • Impedance
    33 mOhms
  • Ripple Current @ Low Frequency
    1.95 A @ 120 Hz
  • Ripple Current @ High Frequency
    2.6 A @ 100 kHz
