LNU2H272MSEG
Part number：
LNU2H272MSEG
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：

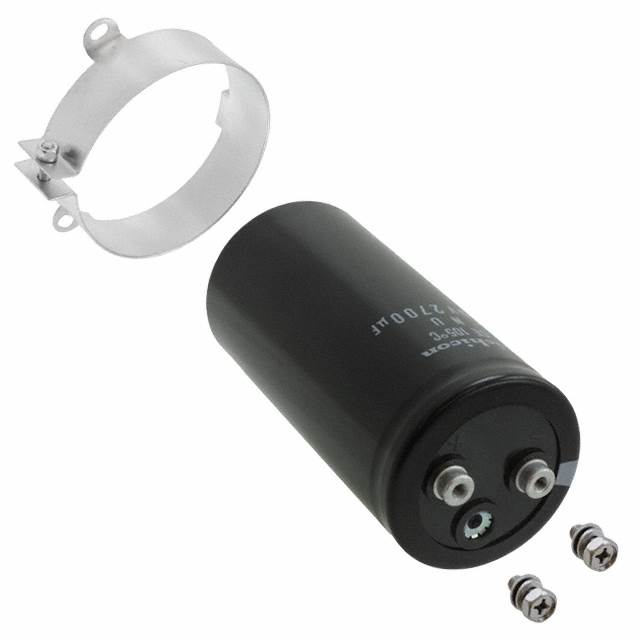

CAP ALUM 2700UF 20% 500V SCREW
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1623
minimum : 0
quantity
unit price
price
1
96.79
96.79
25
87.71
2192.75
50
81.67
4083.5
100
77.73
7773
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - Screw Terminals
  • Size / Dimension
    2.500" Dia (63.50mm)
  • Polarization
    Polar
  • Mounting Type
    Chassis Mount
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    1.126" (28.60mm)
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    5.433" (138.00mm)
  • Capacitance
    2700 µF
  • Voltage - Rated
    500 V
  • Ripple Current @ Low Frequency
    9.6 A @ 120 Hz
  • Ripple Current @ High Frequency
    13.44 A @ 10 kHz
