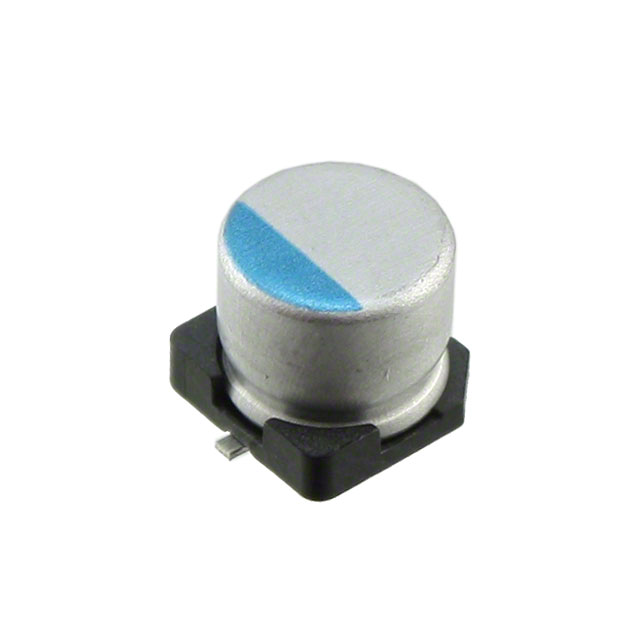

UCX1V101MCS6GS
Part number：
UCX1V101MCS6GS
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：
CAP ALUM 100UF 20% 35V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 7479
minimum : 0
quantity
unit price
price
600
0.57
342
1200
0.51
612
3000
0.47
1410
4200
0.46
1932
15000
0.43
6450
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.248" Dia (6.30mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -40°C ~ 135°C
  • Applications
    General Purpose
  • ESR (Equivalent Series Resistance)
    250mOhm
  • Lifetime @ Temp.
    2000 Hrs @ 135°C
  • Surface Mount Land Size
    0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height - Seated (Max)
    0.413" (10.50mm)
  • Capacitance
    100 µF
  • Voltage - Rated
    35 V
  • Ripple Current @ Low Frequency
    98.5 mA @ 120 Hz
  • Ripple Current @ High Frequency
    197 mA @ 100 kHz
