UCY2W180MPD
Part number：
UCY2W180MPD
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：

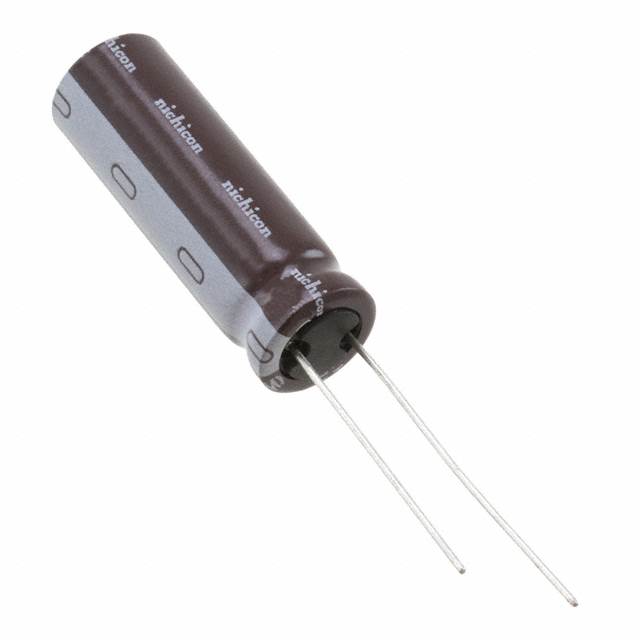

CAP ALUM 18UF 20% 450V RADIAL
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1945
minimum : 0
quantity
unit price
price
1
1.53
1.53
10
1.15
11.5
100
0.86
86
1000
0.6
600
5000
0.54
2700
10000
0.52
5200
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.394" Dia (10.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    12000 Hrs @ 105°C
  • Height - Seated (Max)
    1.299" (33.00mm)
  • Capacitance
    18 µF
  • Voltage - Rated
    450 V
  • Ripple Current @ Low Frequency
    215 mA @ 120 Hz
  • Ripple Current @ High Frequency
    430 mA @ 100 kHz
