UCYW6330MHD3
Part number：
UCYW6330MHD3
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：

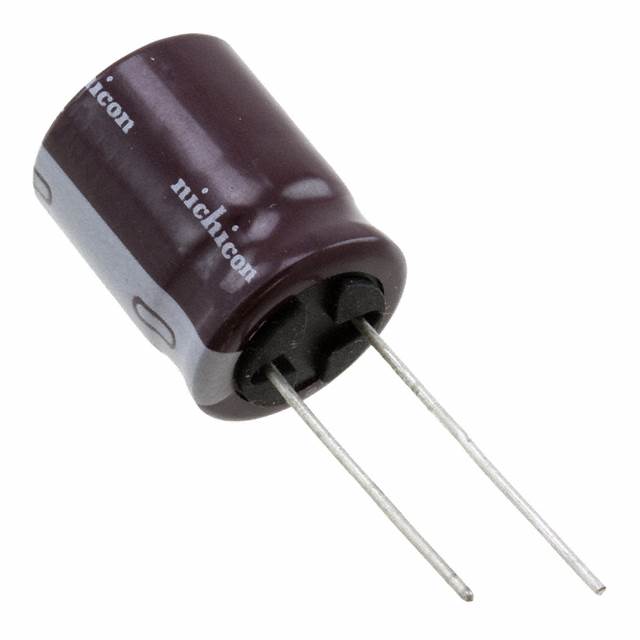

CAP ALUM 33UF 20% 420V RADIAL
package：
Bulk
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 2200
minimum : 0
quantity
unit price
price
1
2.23
2.23
10
1.71
17.1
50
1.57
78.5
100
1.3
130
600
1.05
630
1200
0.92
1104
3000
0.88
2640
5400
0.85
4590
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.630" Dia (16.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.295" (7.50mm)
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    12000 Hrs @ 105°C
  • Height - Seated (Max)
    0.846" (21.50mm)
  • Capacitance
    33 µF
  • Voltage - Rated
    420 V
  • Ripple Current @ Low Frequency
    385 mA @ 120 Hz
  • Ripple Current @ High Frequency
    770 mA @ 100 kHz
