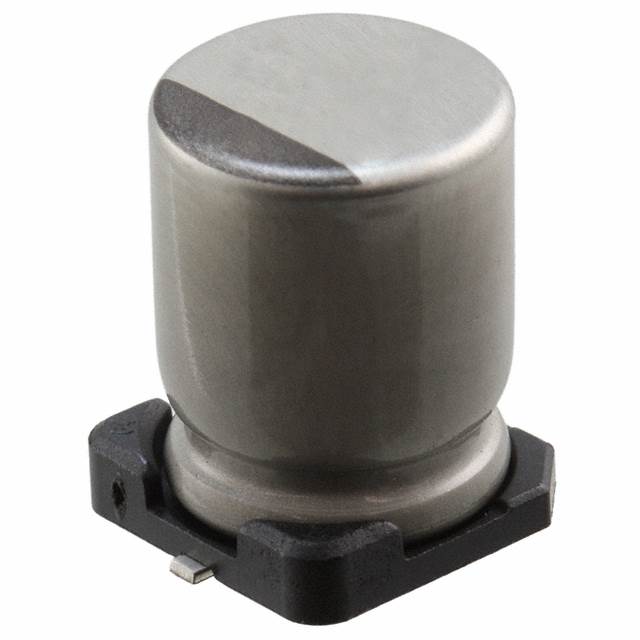

ULR2C150MNL1GS
Part number：
ULR2C150MNL1GS
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：
CAP ALUM 15UF 20% 160V SMD
package：
Tape & Reel (TR)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1611
minimum : 0
quantity
unit price
price
500
0.33
165
1000
0.29
290
2500
0.27
675
5000
0.25
1250
12500
0.24
3000
25000
0.24
6000
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can - SMD
  • Size / Dimension
    0.315" Dia (8.00mm)
  • Polarization
    Polar
  • Mounting Type
    Surface Mount
  • Operating Temperature
    -40°C ~ 105°C
  • Applications
    General Purpose
  • Ratings
    AEC-Q200
  • Lifetime @ Temp.
    3000 Hrs @ 105°C
  • Surface Mount Land Size
    0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height - Seated (Max)
    0.433" (11.00mm)
  • Capacitance
    15 µF
  • Voltage - Rated
    160 V
  • Ripple Current @ Low Frequency
    50 mA @ 120 Hz
  • Ripple Current @ High Frequency
    80 mA @ 10 kHz
