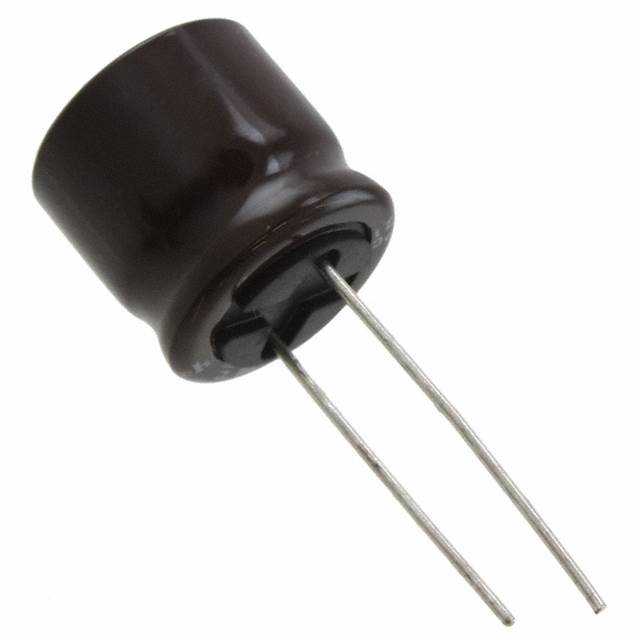

UPJ1J181MHD6TN
Part number：
UPJ1J181MHD6TN
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：
CAP ALUM 180UF 20% 63V RADIAL
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1766
minimum : 0
quantity
unit price
price
250
0.55
137.5
500
0.47
235
750
0.44
330
1250
0.41
512.5
2500
0.39
975
6250
0.37
2312.5
12500
0.35
4375
25000
0.34
8500
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.630" Dia (16.00mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.295" (7.50mm)
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    0.650" (16.50mm)
  • Capacitance
    180 µF
  • Voltage - Rated
    63 V
  • Impedance
    120 mOhms
  • Ripple Current @ Low Frequency
    750 mA @ 120 Hz
  • Ripple Current @ High Frequency
    1.05 A @ 10 kHz
  • 13670023222
