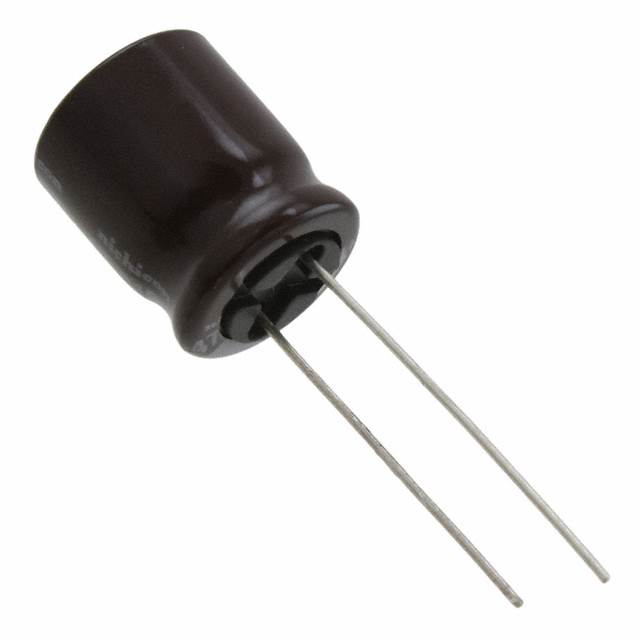

UPJ1K680MHD6TO
Part number：
UPJ1K680MHD6TO
CLASSIFICATION：
Capacitors
manufacturer：
Nichicon
describe：
CAP ALUM 68UF 20% 80V RADIAL
package：
Tape & Box (TB)
ROHS status：
Yes
currency：
USD
BUY NOW add to cart
inventory 1625
minimum : 0
quantity
unit price
price
500
0.36
180
1000
0.31
310
2500
0.29
725
5000
0.28
1400
12500
0.26
3250
25000
0.26
6500
specifications
  • Tolerance
    ±20%
  • Package / Case
    Radial, Can
  • Size / Dimension
    0.492" Dia (12.50mm)
  • Polarization
    Polar
  • Mounting Type
    Through Hole
  • Operating Temperature
    -55°C ~ 105°C
  • Applications
    General Purpose
  • Lead Spacing
    0.197" (5.00mm)
  • Lifetime @ Temp.
    5000 Hrs @ 105°C
  • Height - Seated (Max)
    0.650" (16.50mm)
  • Capacitance
    68 µF
  • Voltage - Rated
    80 V
  • Impedance
    310 mOhms
  • Ripple Current @ Low Frequency
    249 mA @ 120 Hz
  • Ripple Current @ High Frequency
    402 mA @ 10 kHz
